Motherboard Standoffs? Explained
Nine little brass spacers, and your entire PC depends on them. Motherboard standoffs lift the board off the case metal so nothing shorts underneath — skip one in the wrong spot, or add an extra, and the board can die on first power-on. Here is the five-minute job done right.
TL;DR / Quick Fix
Quick fix: standoffs are the brass spacers between motherboard and case that prevent short circuits. Install one under every motherboard mounting hole — no more, no fewer. An extra standoff touching the board's back can short and kill it. Check alignment before lowering the board in.
Follow these steps

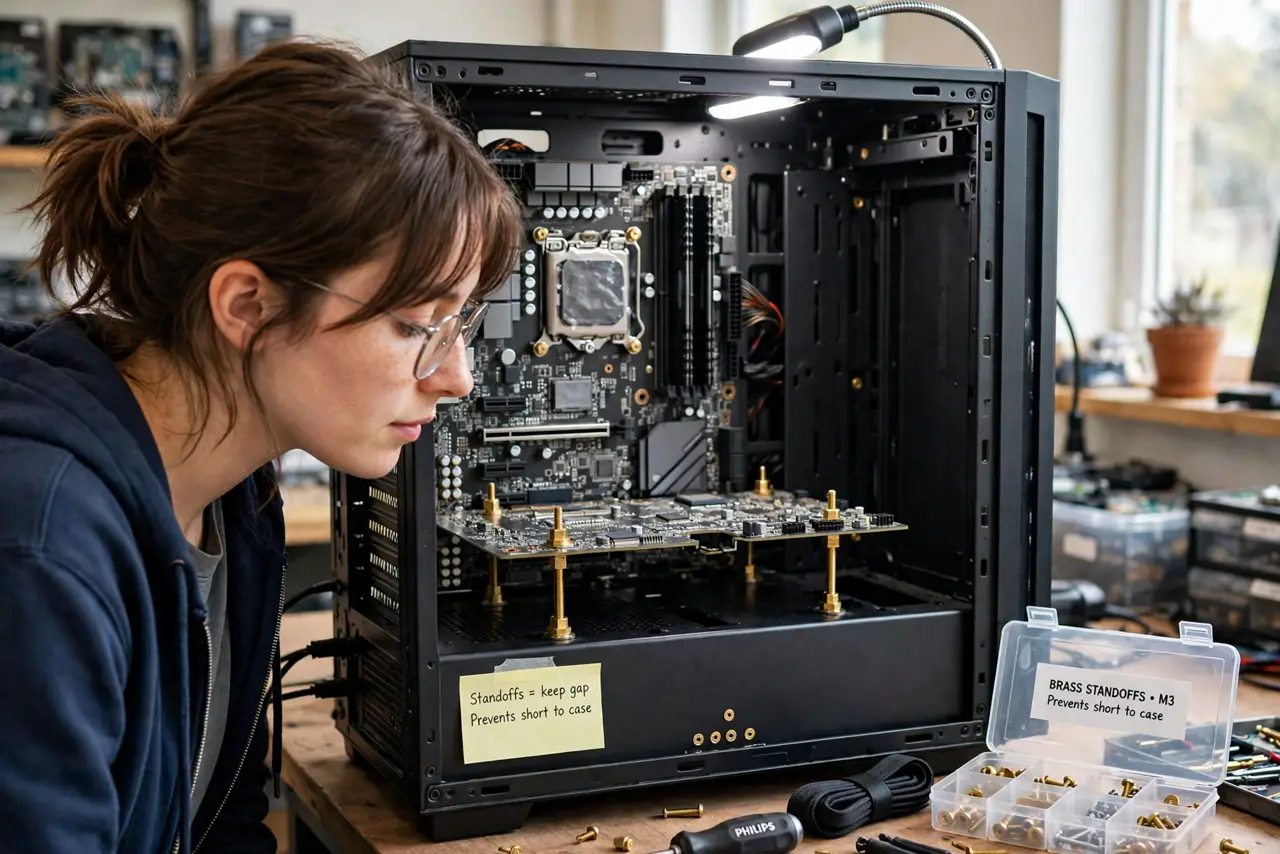

- Learn what they prevent. The motherboard's solder points sit millimeters above conductive case metal. Standoffs hold the gap — without them, power meets metal and the board shorts.
- Match standoffs to holes. Lay the board in the case and note which case holes line up with board holes. ATX, micro-ATX, and ITX use different subsets of the case's holes.

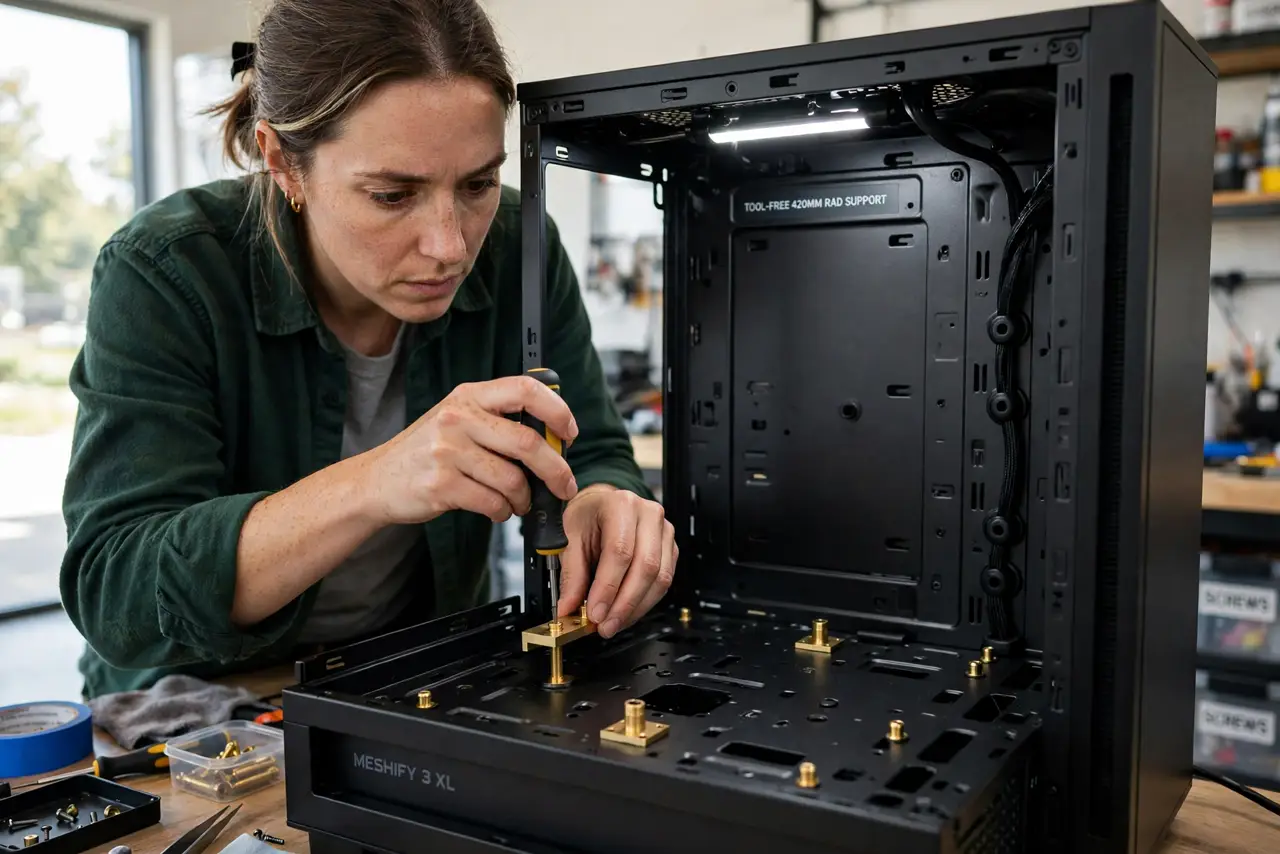

- Install only matching standoffs. Screw a standoff into each lined-up case hole. Every extra standoff under the board is a potential short — remove strays.
- Use the right tool gently. Fingers plus a final snug with pliers or the included tool. Overtightening strips the case threads; undertightening lets them spin later.
- Lower the board straight down. Align the rear I/O with the case cutout first, then lower evenly onto the standoffs. Sliding the board around scratches traces.
- Screw the board down evenly. Use the board screws through each hole into its standoff. Snug in a star pattern — firm, not gorilla-tight.
What NOT to do
- Do not leave an extra standoff under the board. One stray spacer touching a solder point can kill a motherboard instantly.
- Do not mount the board directly on the case. No standoffs means guaranteed shorts on first power-on.
- Do not overtighten board screws. Cracked boards from over-torquing are a real and expensive mistake.
- Do not forget the I/O shield. Install it before the board — retrofitting it afterward means removing everything.
Frequently asked questions
What happens if I forget a standoff?
A missing standoff under a hole just means less support — usually harmless. An EXTRA standoff where no hole exists is the killer.
Are standoffs universal?
The thread standard is common across cases, but heights vary. Use the ones that came with your case.
My case came with standoffs pre-installed — check anyway?
Yes. Pre-installed layouts assume full ATX; smaller boards need the extras removed.
