Color Scales? Basics
You want to spot the highest and lowest values in a table without reading every number. Color scales wash each cell in a color gradient — green for high, red for low, or any palette you choose — turning a boring grid into an instant heatmap. Like data bars, they take seconds to apply and cost nothing to remove. Here is how to use them well.
TL;DR / Quick Fix
Quick fix: select your numbers, go to Home, then Conditional Formatting, then Color Scales, and pick a palette. Excel shades each cell from low to high instantly. Use Manage Rules to change colors or set fixed minimums, and Clear Rules to remove them. The underlying numbers never change.
Follow these steps

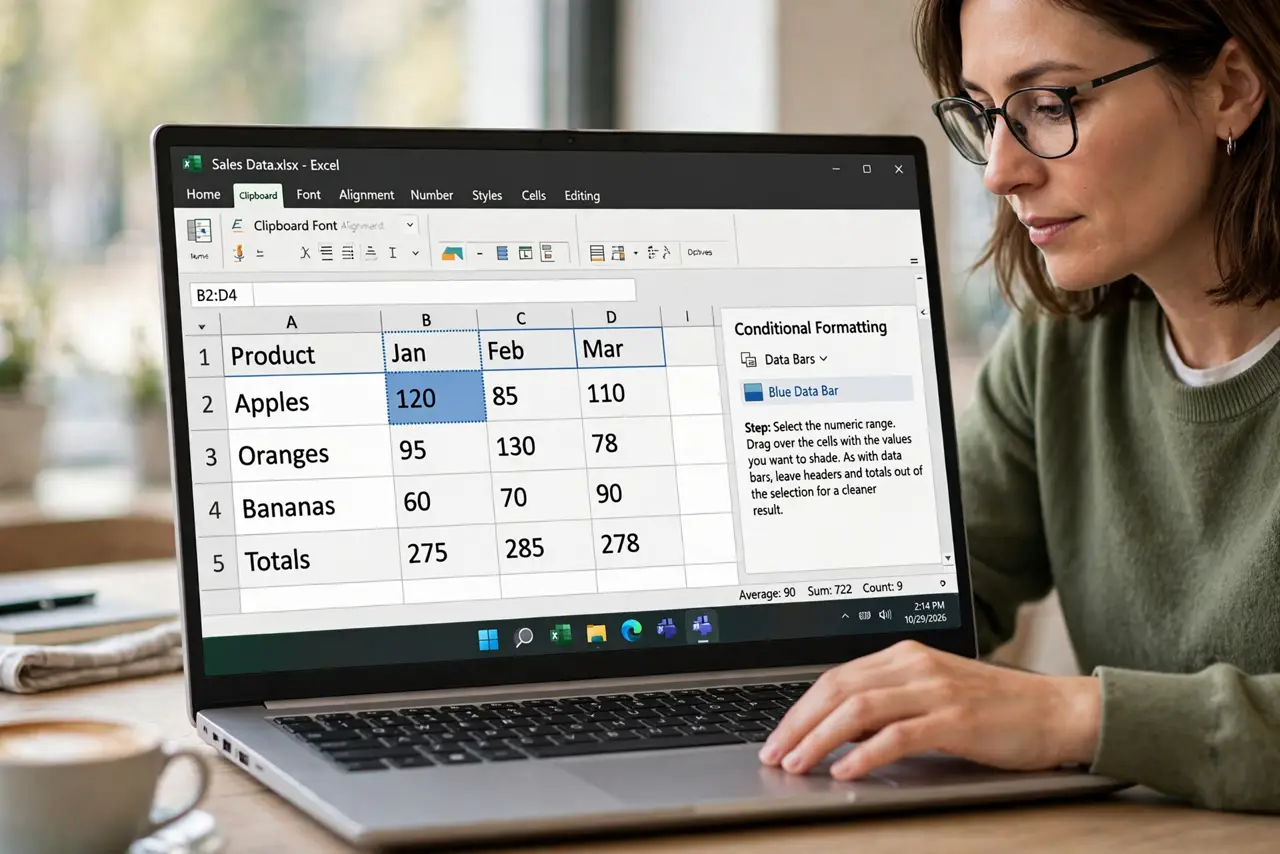

- Select the numeric range. Drag over the cells with the values you want to shade. As with data bars, leave headers and totals out of the selection for a cleaner result.

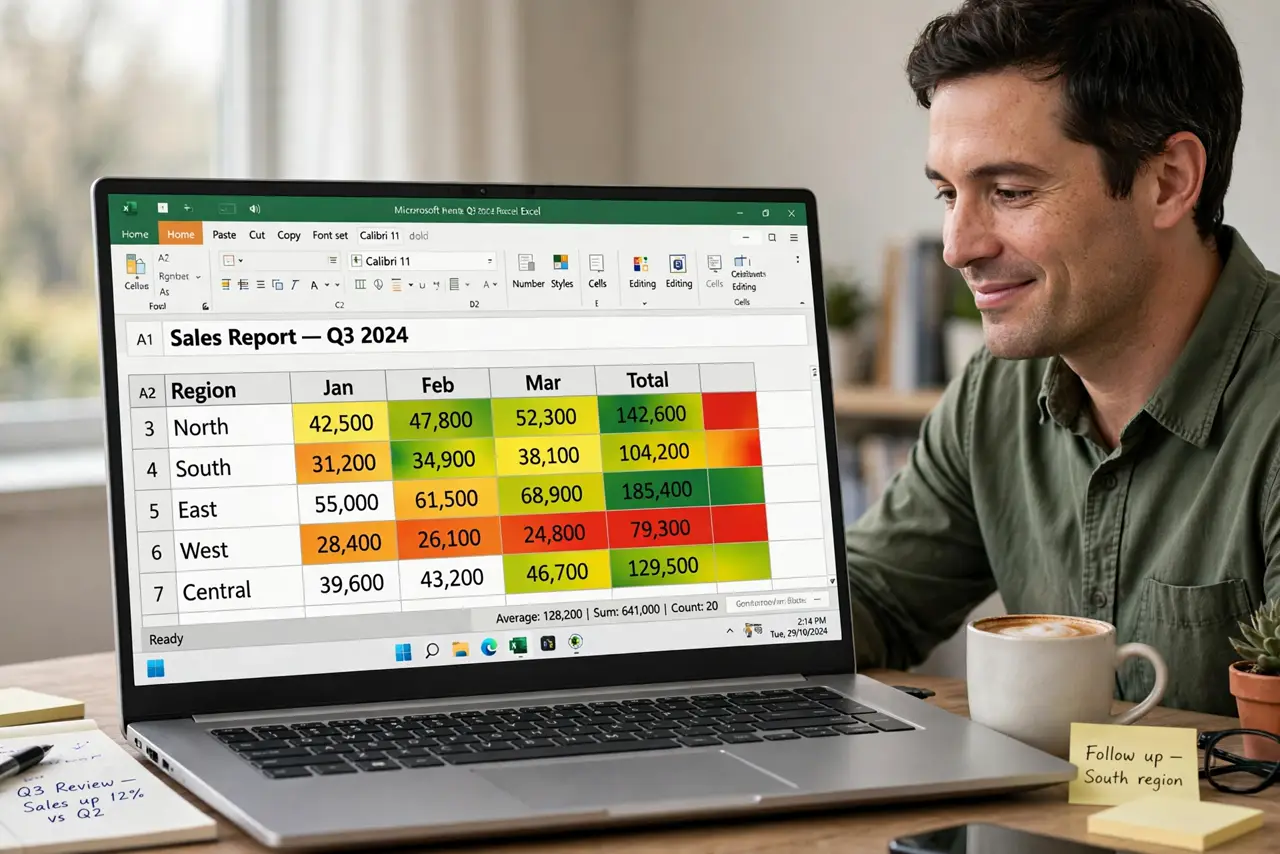

- Apply a color scale. On the Home tab, click Conditional Formatting, hover over Color Scales, and choose a palette — the classic green-yellow-red, or a subtler two-color scale. The heatmap appears immediately.
- Pick the right palette for your data. Use green-yellow-red for good-vs-bad rankings, and a single-hue scale (light to dark blue) when values are neutral. Red-green is hard for colorblind readers — a blue or orange scale is the safer default.
- Set fixed endpoints when comparing over time. By default the scale stretches from your current min to max, so adding data later re-shades everything. In Manage Rules > Edit Rule, set fixed minimum and maximum values for a stable, honest scale.
- Combine carefully with other formats. Color scales stack with data bars or icon sets, but too many layers turn the sheet into confetti. One visual cue per range keeps it readable.
- Remove the scale cleanly. Select the range, go to Conditional Formatting > Clear Rules > Clear Rules from Selected Cells. The colors vanish; your numbers and formulas are untouched.
What NOT to do
- Do not use red-green scales for shared reports. Colorblind colleagues cannot read them — pick a colorblind-safe palette like blue-white-orange.
- Do not apply color scales to non-numeric cells. Text gets ignored and the result looks patchy and broken.
- Do not rely on color alone for critical meaning. Pair the scale with the numbers themselves — colors print differently and fade on projectors.
- Do not leave the default min/max on a growing dataset. Each new extreme re-shades the whole range and rewrites the story — pin the endpoints.
Frequently asked questions
Why does my whole column look the same color?
Your values are very close together, so the gradient has little range to show. Set a narrower fixed min/max to stretch the contrast, or accept that the data is genuinely flat.
Can I use my company's brand colors?
Yes — in Edit Rule, choose Custom Format or a 3-color scale and set each endpoint color manually. Save it as a template for consistent reports.
Do color scales work in printed reports?
They print, but pale shades wash out and dark shades eat toner. Preview in grayscale before printing anything important.
